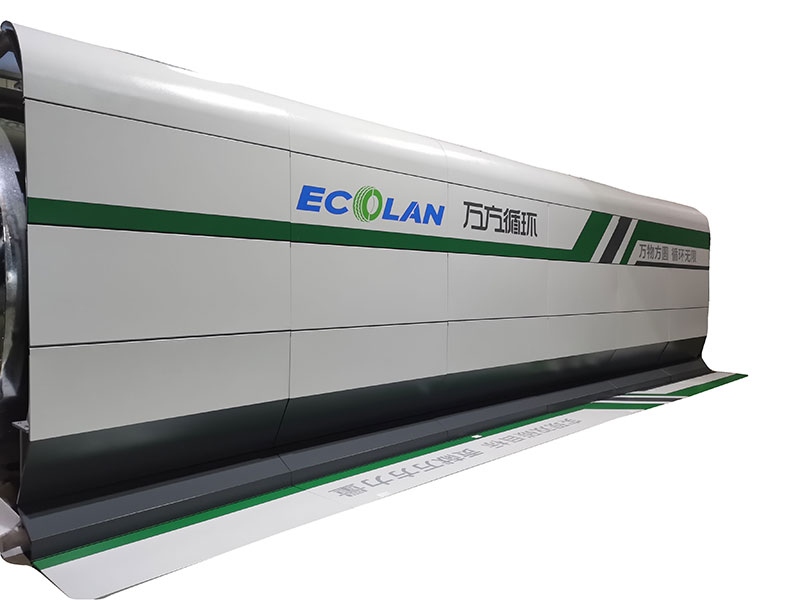

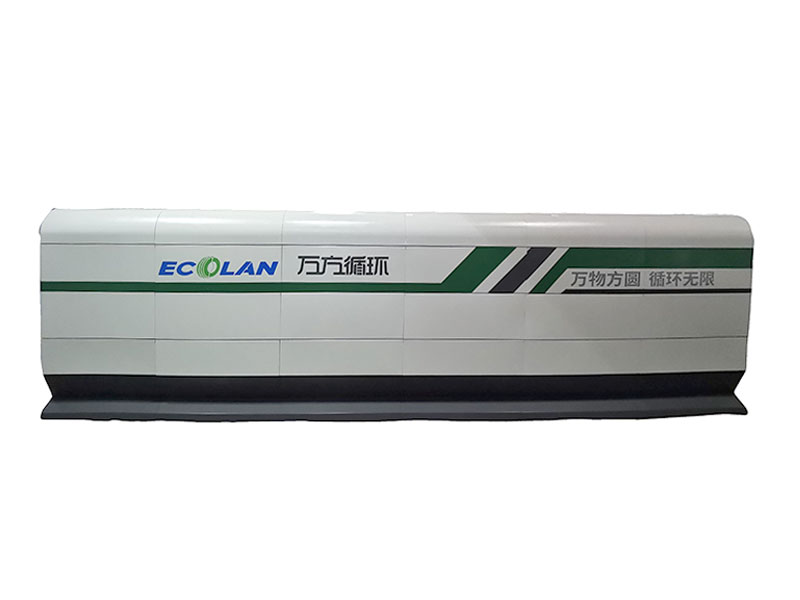

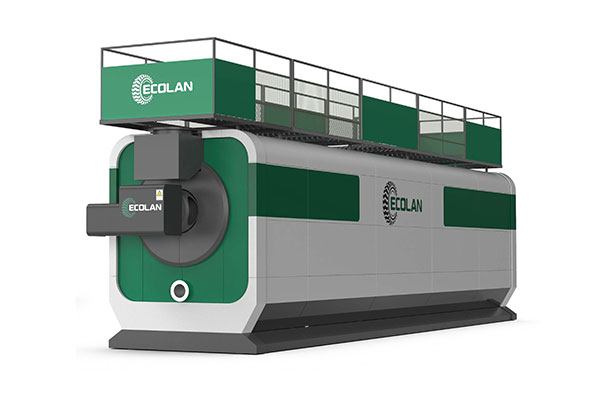

Waste rubber continuous pyrolysis production lines
技術參數 Technical Parameter | |
裂解原料 Pyrolysis feedstock | 廢塑料、廢橡膠 Waste plastics、waste rubber |
最終產品 Final product | 裂解油、裂解不凝氣、裂解炭黑 Pyrolysis oil and Pyrolysis non condensable gas、Pyrolysis carbon black |
生產形式 Production form | 連續化 Continuous |
供熱方式 Heating mode | 可調式恒溫供熱 Adjustable constant temperature heating |
爐體規格 Specification of pyrolysis furnace | 1600mm×12000mm |
工作壓力 Working pressure | ＜1000Pa |
裂解溫度 Pyrolysis temperature | 塑料/Plastic：600~650℃ |
橡膠/Rubber：400~450℃ | |
生產線產能 Production line capacity | 按需定制 On demand customization |
設備特點 Equipment features
1、致力于廢塑料制品、廢橡膠制品等的高溫裂解，最大限度的回收資源，從而實現資源化再利用；
It is committed to the high-temperature cracking of waste plastic products and waste rubber products to maximize the recycling of resources， so as to realize resource reuse ；
2、生產線實現連續穩定運行，不受環境因素影響，安全環保，預處理過程、裂解過程、后處理過程均密閉進行，無二次污染，高效環保；
The production line realizes continuous and stable operation，is not affected by environmental factors，is safe and environmentally friendly， and the pretreatment process，cracking process and post-treatment process are carried out in a closed manner，without secondary pollution，high efficiency and environmental protection；
3、生產線配置DCS/PLC智能控制系統，自動化程度高，實現安全化、智能化操作，降低人員配置需求；
The production line is equipped with DCS / PLC intelligent control system，with high degree of automation，safe and intelligent operation and reduced staffing requirements；
4、可按需提供生產線設計規劃、設備配置及供應、工藝流程指導及售后服務等整體解決方案。
It can provide overall solutions such as production line design planning, equipment configuration and supply，process flow guidance and after-sales service as needed.
-
Waste rubber continuous pyrolysis production lines
Protect the natural environment and promote the development of the world circular economy.
